Understanding SCADA Systems in Modern Substations

Introduction

Modern substations rely on SCADA systems for real-time monitoring and control. The architecture below shows how field devices connect to the central control layer.

Key Components

The main building blocks of a digital substation SCADA system:

Communication Architecture

The data flow from field to control centre follows a strict hierarchy:

flowchart TD
    A[Field Devices\nCTs / VTs / CBs] -->|IEC 61850 GOOSE| B[Bay Controller / IED]
    B -->|MMS over TCP/IP| C[Station Bus]
    C --> D[SCADA Server]
    D -->|DNP3 / IEC 104| E[Control Centre]
    D --> F[Historian]
    D --> G[HMI Workstation]

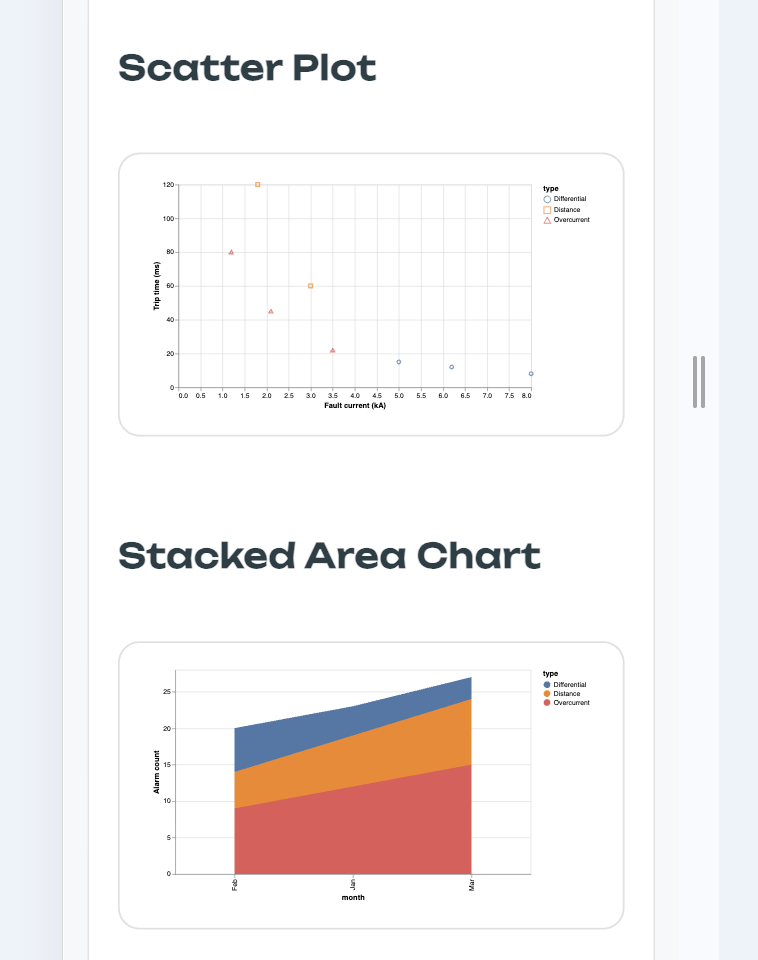

Protection Coordination

Protection zones must be defined carefully to avoid overlaps and blind spots.

Key rules:

1. Every primary equipment item must fall inside at least one protection zone.
2. Zones should overlap at breakers — never at transformers or busbars.
3. Communication-assisted schemes (POTT, PUTT) require end-to-end latency below 20 ms.

Signal Processing Pipeline

sequenceDiagram
    participant IED
    participant StationBus
    participant SCADA
    participant Historian

    IED->>StationBus: GOOSE: CB status change
    StationBus->>SCADA: MMS report
    SCADA->>Historian: Tag write (timestamp, value, quality)
    SCADA->>HMI: Alarm notification

System Diagram

The full system layout is shown below:

Further Reading

For detailed specifications and calculations, refer to the attached technical report:

Download the full technical report (PDF)

Conclusion

SCADA integration is a foundational requirement for digital substation operations. Proper architecture, redundant communication paths, and strict time synchronisation are essential for reliable protection and control.
